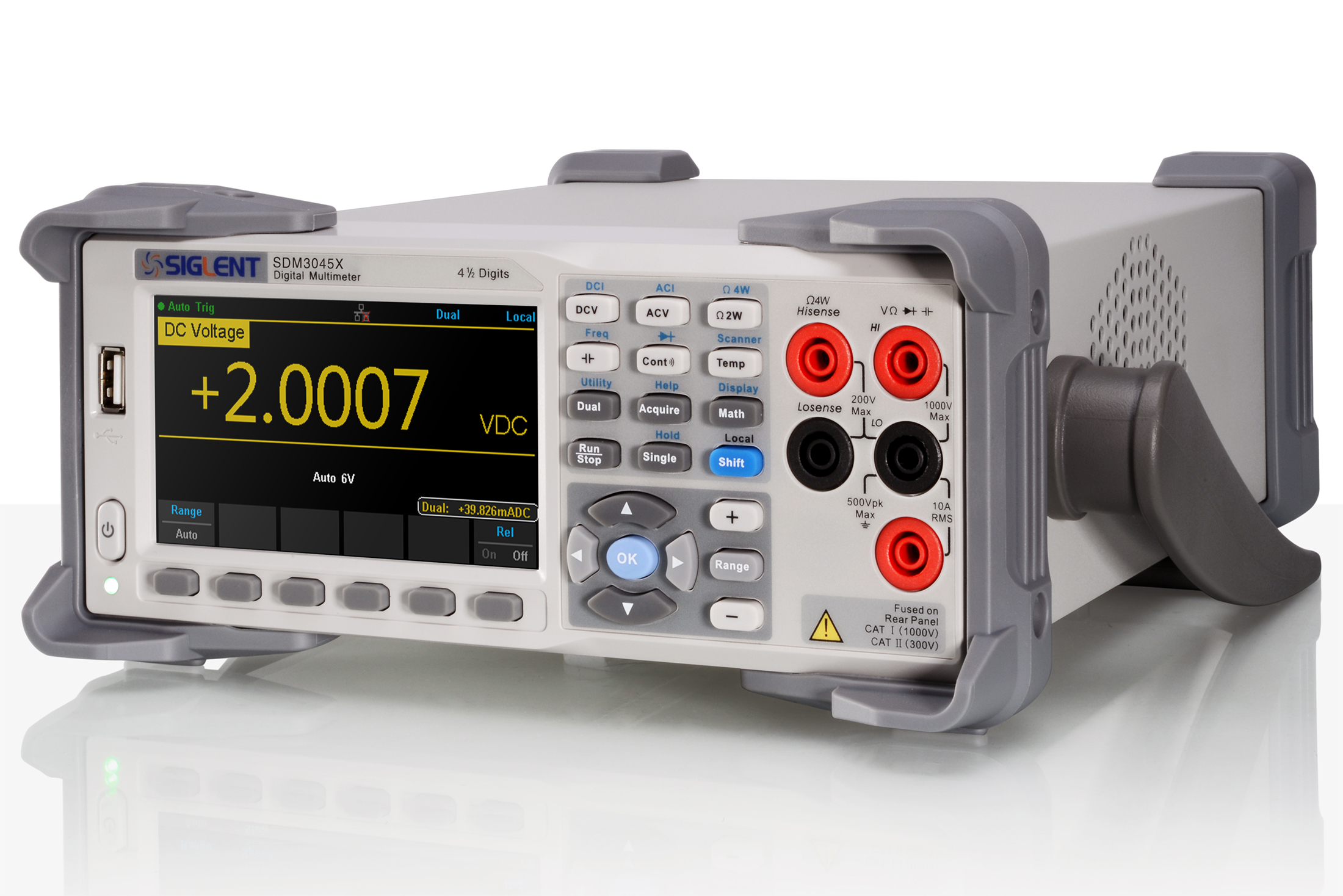

Multimetro SIGLENT SDM3045X

Multimetro digitale TRMS, 1000 V, 10 A, display LCD a 4.5 cifre, interfaccia USB e LAN.


CARATTERISTICHE TECNICHE:

Real 4.5 digit (60000 count) readings resolution
Up to 150 rdgs/s measurement speed
True-RMS AC voltage and AC current measuring

DC voltage: 600 mV to 1000 V
DC current: 600 μA to 10 A

AC voltage: True-RMS, 600 mV to 750 V
AC current: True-RMS,60 mA to 10 A

2/4-Wire resistance: 600 Ω to 100 MΩ
Capacitance: 2 nF to 10000 μF

Continuity test: Range is fixed at 2 kΩ
Diode test: adjustable range is 0~4 V

Frequency measurement: 20 Hz to 500 kHz
Period measurement: 2 μs to 0.05 s

Temperature: support for TC and RTD sensor
Max, Min, Average, Standard Deviation, dBm/dB, Relative Measurement ,Pass/Fail Histogram, Trend Chart

1 Gb NAND flash size, mass storage configuration files and data files
Built-in cold terminal compensation for thermocouple
PC software: EasySDM

Standard interface: USB Device, USB Host, LAN
USB & LAN remote interfaces support common SCPI command set. Compatible with other popular DMMs on the market
