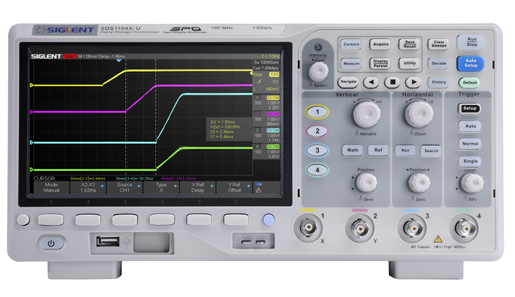

Oscilloscopio SIGLENT SDS1104X-U

NOVITA’: Oscilloscopio digitale, 4 canali 100 MHz, 1 GSa/s, memoria 14 Mpts, display 7″, tecnologia SPO.


Link alle specifiche tecniche approfondite


CARATTERISTICHE TECNICHE:

Bandwidth: 100 MHz
Sampling rate (max.): 1 GSa/s (1 CH), 500 MSa/s (2 CH), 250 MSa/s (4 CH)

Channels: 4
Memory depth (max.): 14 Mpts
Waveform capture rate (max.): 100.000 wfm/s (normal mode), 400.000 wfm/s (sequence mode)

Trigger type: Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video
Serial trigger and decoder (standard): IIC, SPI, UART/RS232, CAN, LIN

I/O: USB Host, USB Device, LAN, Pass/Fail, Trigger Out
Probe (std): 4 pcs passive probe PP510

Display 7” TFT-LCD (800×480)
Weight: 2.6 kg
