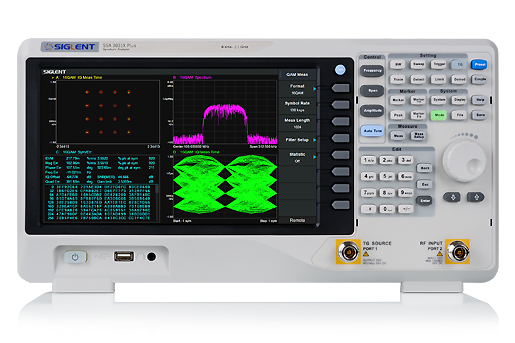

Analizzatore di spettro SIGLENT SSA3015X Plus

Analizzatore di spettro da 9 kHz a 1,5 GHz, risoluzione 1 Hz, interfaccia LAN e USB 2.0, Touch screen e Webserver.

Link al manuale utente

Link alle specifiche tecniche approfondite


Frequency range: from 9 kHz to 1.5 GHz
Resolution bandwidth: from 1 Hz to 1 MHz, in 1-3-10 sequence

Displayed average noise level: -161 dBm/Hz, normalize to 1 Hz (typ.)
Phase noise: < -98 dBc/Hz @1 GHz, 10 kHz offset
Amplitude precision: < 0.7 dB

All-Digital IF Technology
Standard preamplifier

– 2.1 GHz tracking generator kit INCLUSO
– reflection measurement kit
– advanced measurement kit
– EMI Pre-compliance measurements kit
– Vector signal modulation analysis mode

Optional accessories: utility kit, Refl-SSA3000X, near field probe, N-SMA cable, N-N cable, N-BNC cable, soft carrying bag

Display: TFT LCD, 1024 x 600 (waveform area 751 x 501), 10.1 inch
Multi-Touch screen
Mouse and keyboard supported
Web Browser Remote Control on PC and Mobile Terminals and File Operation
Storage: internal (Flash) 256 MB, external (USB storage device) 32 GB

Dimension: 393 x 207 x 116.5 mm
Weight: 4.40 kg
